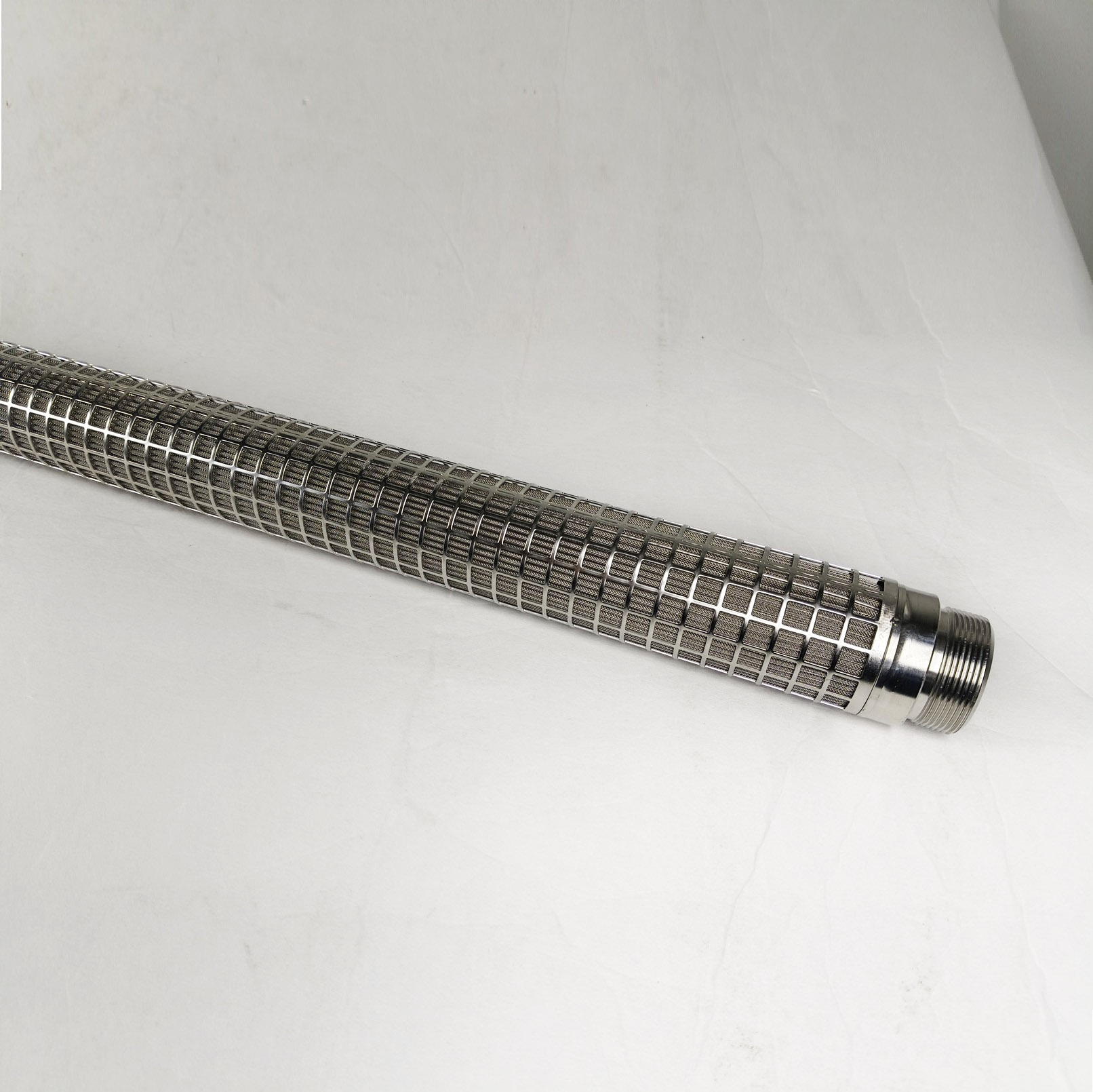

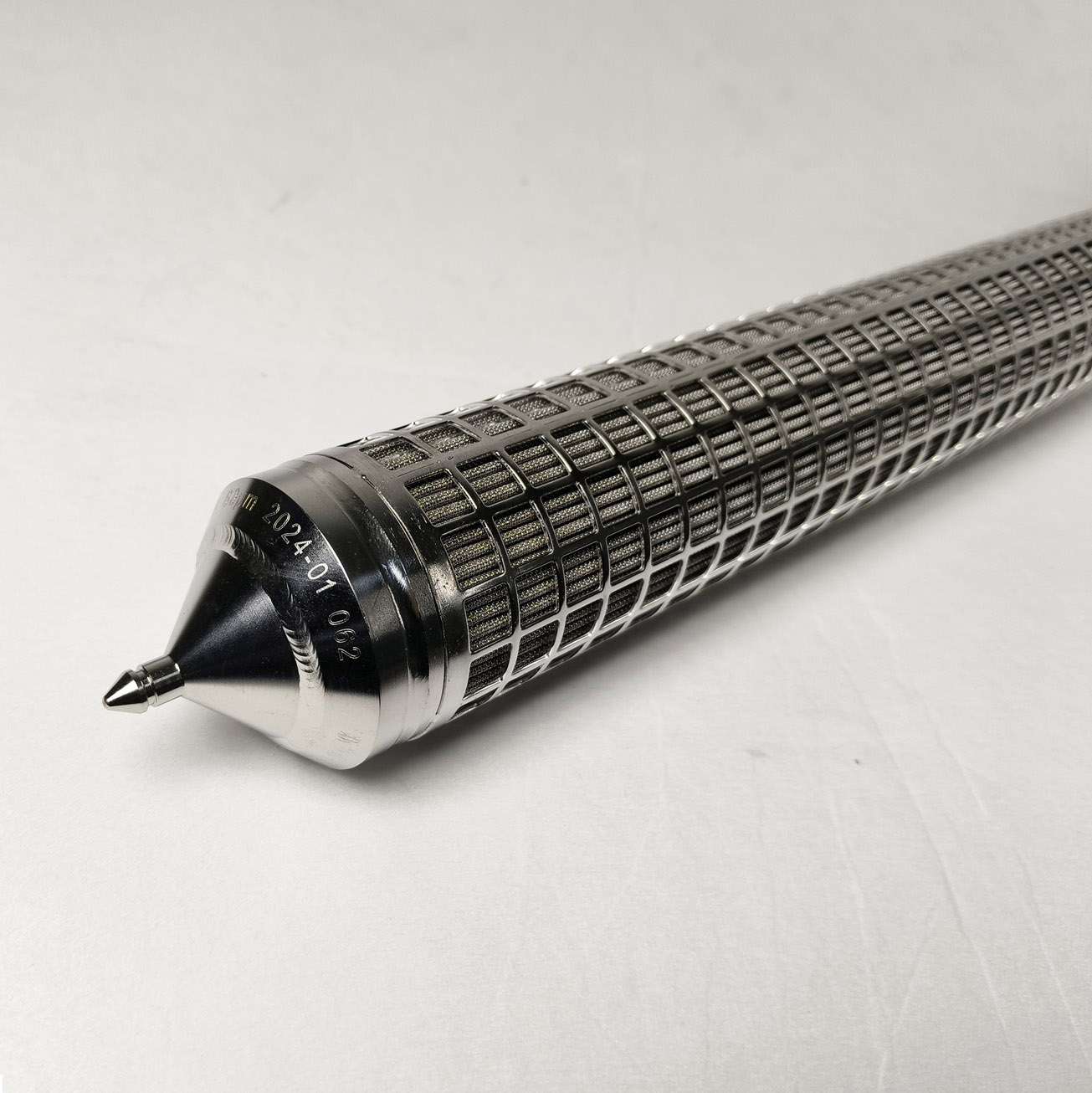

RT-175 Meltblown Spunbond Process filter element

RT-175 Meltblown Spunbond Process filter element

The FLTR Polyester Melt CPF Series Elements are specialized filtration components designed for applications involving polyester melt processing. These filter elements are critical in ensuring the quality and consistency of the polyester melt during manufacturing, particularly in processes like fiber production, film extrusion, and other polymer-based products.

Key Features:

1. High Temperature Resistance: Designed to operate under high-temperature conditions typical of polyester melt processes.

2. Fine Filtration: Offers precise filtration levels to remove contaminants and ensure the purity of the melt.

3. Durability: Made from robust materials to withstand the abrasive nature of molten polyester.

4. Efficient Flow Rates: Optimized for minimal pressure drop while maintaining high filtration efficiency.

5. Customizable Options: Available in various micron ratings and sizes to suit different industrial applications.

Applications:

• Polyester Fiber Production: Removes impurities that can lead to defects in fibers.

• Film Extrusion: Ensures consistent melt quality for smooth and uniform film production.

• Recycling Processes: Used in reclaiming polyester materials to maintain quality during remelting.

Filter integrity test bench

A Filter Element Structural Integrity Test Bench is a specialized setup used to test the mechanical strength, durability, and filtration integrity of filter elements under controlled conditions. This bench simulates real-world operational stresses, ensuring that filter elements meet necessary performance standards before being deployed in industrial applications, such as polymer processing, water filtration, and chemical processing.

Here's a breakdown of the key aspects of a Filter Element Structural Integrity Test Bench:

1. Purpose

• The test bench evaluates whether a filter element can maintain its structural integrity under different conditions, including high pressures, temperatures, and flow rates.

• It checks for leakage, burst strength, collapse pressure, and overall durability of the filter element.

• The goal is to ensure that the filter can withstand operational stresses without failure, which is crucial for applications where a compromised filter could lead to equipment damage, contamination, or process interruptions.

2. Key Test Parameters

• Burst Pressure: The maximum pressure the filter can withstand before bursting. This test is vital for filters in high-pressure environments.

• Collapse Pressure: Ensures the filter can endure pressures without collapsing inward. This is crucial for filters exposed to high vacuum or suction forces.

• Temperature Tolerance: Tests filter performance under elevated or fluctuating temperatures.

• Flow Rate and Differential Pressure: Measures the filter's ability to handle specific flow rates and pressure drops, helping assess how it performs under operating flow conditions.

• Leakage and Bypass: Ensures that contaminants do not bypass the filter media, which would compromise filtration effectiveness.

3. Construction of a Test Bench

• The test bench typically includes:

  • Pressure and Temperature Control Systems: Allows simulation of high-pressure and high-temperature environments to test filter performance under extreme conditions.

  • Flow Meters and Pressure Sensors: Measure the flow rate and differential pressure across the filter element to evaluate its resistance and integrity.

  • Burst and Collapse Test Chambers: Special chambers where the filter is subjected to increasing pressures until it bursts or collapses, determining its maximum capacity.

  • Data Acquisition System (DAS): Collects and records real-time data on temperature, pressure, and flow rate to analyze filter performance and integrity over time.

  • Leak Detection Mechanisms: Monitors for any bypass or leakage during testing.




4. Types of Tests Conducted

• Bubble Point Test: Assesses the largest pore size by pushing gas through the wetted filter until bubbles appear, indicating maximum pore pressure.

• Hydrostatic Testing: Determines the maximum pressure the filter can hold before rupture.

• Thermal Cycling: Subjects the filter to cycles of heating and cooling to test for thermal shock resistance.

• Pressure Hold Testing: The filter is subjected to a certain pressure for a set time to test for any structural weakness or slow leakage.

• Flow and Differential Pressure Testing: Measures how the filter handles varying flow rates and checks for changes in differential pressure that might indicate clogging or failure.

5. Applications

• Polymer and Chemical Processing: For filters used in extreme conditions, ensuring no rupture or collapse under high temperatures and pressures.

• Water and Wastewater Treatment: Testing filters for stability under continuous operation to prevent contamination bypass.

• Aerospace and Automotive: Testing fuel, oil, and air filters for structural integrity under high-stress conditions to ensure reliability.

• Food and Beverage Processing: Ensuring filters can handle sterilization processes without structural degradation.

6. Benefits of Using a Filter Integrity Test Bench

• Safety Assurance: Verifies that filters meet strict safety standards to prevent contamination or failure in critical applications.

• Quality Control: Helps manufacturers ensure that each filter meets design specifications and quality requirements before market release.

• Operational Reliability: Provides end-users with confidence that filters will perform as expected, reducing downtime and maintenance.

• Cost Savings: Avoids the need for costly replacements and repairs by identifying weak filters early in the production process.

7. Data Analysis and Reporting

• The data collected from the test bench can be analyzed to assess:

  • Failure Points: Identifying the conditions under which the filter fails, which is useful for improving design and material selection.

  • Performance Under Stress: How the filter performs under various pressures, temperatures, and flow conditions.

  • Consistency Across Batches: Helps maintain quality control by comparing test results across batches of filters.




8. Customization of the Test Bench

• The test bench can be customized to simulate the specific conditions expected in different industrial applications.

• Various adapters, connectors, and chambers can be included to accommodate a range of filter sizes, shapes, and specifications.

Comparison table of sieve mesh and aperture
