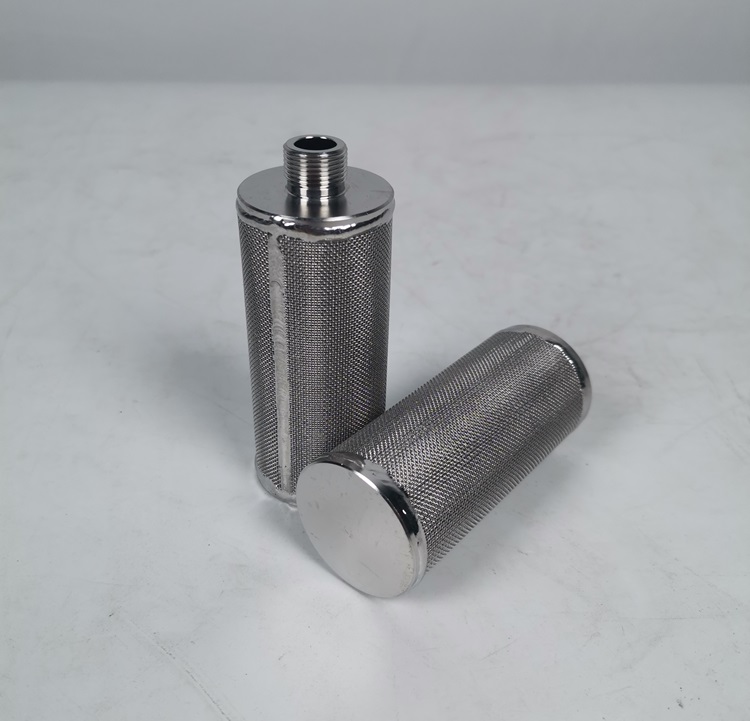

Sintered mesh metal filter element

Sintered mesh, also known as sintered metal mesh or multi-layer metal sintered mesh, is a filter material made of multi-layer metal wire mesh through a high-temperature sintering process. It combines the high mechanical strength and corrosion resistance of metal wire mesh with the fine filtering ability brought by the multi-layer structure, so it is widely used in various industrial fields for filtering, separation, silencing and support. ”

01—Product Features

① Multi-layer structure: Sintered mesh is usually composed of several layers of wire mesh with different mesh sizes superimposed and sintered together. These layers include protective layer, filtration layer, dispersion layer and support layer. Each layer has its specific function and together provide stable filtration performance.

② High strength and rigidity: Due to the use of metal materials, sintered mesh has high mechanical strength and rigidity, and can withstand high pressure difference and harsh working environment.

③ High temperature and corrosion resistance: The metal material enables sintered mesh to work for a long time in high temperature and corrosive environment, and is suitable for applications under various harsh conditions.

④ Uniform filtration accuracy: By precisely controlling the mesh size and thickness of each layer of wire mesh, sintered mesh can provide very uniform and predictable filtration accuracy, which is suitable for precision filtration needs.

⑤ Backwashing function: The structural design of the sintered mesh allows it to be backwashed during use, which helps to remove impurities accumulated on the surface and extend the service life.

⑥ Customizable: According to different application requirements, sintered mesh can be customized into different shapes, sizes and filtration accuracy to meet specific industrial standards.

Application areas

• Chemical industry: used as catalyst carrier, gas purification filter, liquid filter, etc.

• Petroleum industry: used in oil well sand control, oil-water separator, hydraulic system filtration, etc.

• Pharmaceutical industry: used for liquid filtration, aseptic filtration and other processes.

• Food processing: used in the filtration of beverages, edible oils, etc.

• Environmental protection industry: used as filtration medium in wastewater treatment, air purification and other links.
